K703 Toz Keçesi

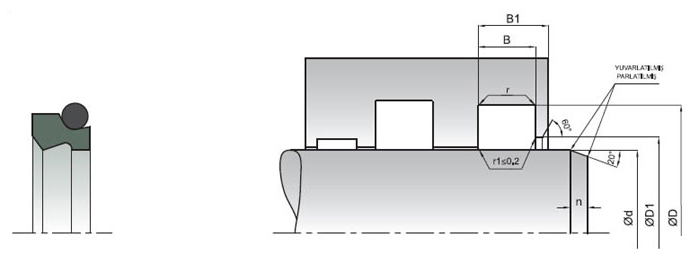

| ÜRÜN KODU | d (f8) | ØD (H9) | ØD1 (H11) | B (-0/+0.2) | B1 | r | o-ring |
|---|---|---|---|---|---|---|---|
| K703-020 | 20 | 27.6 | 21.5 | 4.2 | 7.2 | 0.8 | 21.89X2.62 |
| K703-022 | 22 | 29.6 | 23.5 | 4.2 | 7.2 | 0.8 | 25.07x2.62 |
| K703-025 | 25 | 32.6 | 26.5 | 4.2 | 7.2 | 0.8 | 26.64X2.62 |
| K703-028 | 28 | 35.6 | 29.5 | 4.2 | 7.2 | 0.8 | 29.82X2.62 |
| K703-030 | 30 | 37.6 | 31.5 | 4.2 | 7.2 | 0.8 | 32.99X2.62 |
| K703-032 | 32 | 39.6 | 33.5 | 4.2 | 7.2 | 0.8 | 34.59X2.62 |
| K703-032/1 | 32 | 38.8 | 33.5 | 5 | 7 | 0.8 | 34.59x2.62 |
| K703-036 | 36 | 42.8 | 37.5 | 5 | 7 | 0.8 | 37.77X2.62 |
| K703-036/1 | 36 | 43.6 | 37.5 | 4.2 | 7.2 | 0.8 | 37.77x2.62 |
| K703-040 | 40 | 48.8 | 41.5 | 6.3 | 9.3 | 0.8 | 44.12X2.62 |
| K703-040/1 | 40 | 46.8 | 41.5 | 5 | 7 | 0.8 | 42.52x2.62 |
| K703-042 | 42 | 49.6 | 43.5 | 4.2 | 7.2 | 0.8 | 44.12X2.62 |
| K703-045 | 45 | 53.8 | 46.5 | 6.3 | 9.3 | 0.8 | 48.90X2.62 |
| K703-050 | 50 | 58.8 | 51.5 | 6.3 | 9.3 | 0.8 | 53.64X2.62 |
| K703-055 | 55 | 63.8 | 56.5 | 6.3 | 9.3 | 0.8 | 58.42X2.62 |
| K703-055/1 | 55 | 61.8 | 56.5 | 5 | 7 | 0.8 | 56.82x2.62 |
| K703-056 | 56 | 64.8 | 57.5 | 6.3 | 9.3 | 0.8 | 59.99X2.62 |
| K703-060 | 60 | 68.8 | 61.5 | 6.3 | 9.3 | 0.8 | 63.17X2.62 |
| K703-063 | 63 | 71.8 | 64.5 | 6.3 | 9.3 | 0.8 | 66.34X2.62 |
| K703-065 | 65 | 73.8 | 66.5 | 6.3 | 9.3 | 0.8 | 67.95X2.62 |
| K703-070 | 70 | 82.2 | 72 | 8.1 | 12.1 | 1 | 75.79X3.53 |
| K703-075 | 75 | 87.2 | 77 | 8.1 | 12.1 | 1 | 78.97X3.53 |
| K703-080 | 80 | 92.2 | 82 | 8.1 | 12.1 | 1 | 85.32X3.53 |
| K703-085 | 85 | 97.2 | 87 | 8.1 | 12.1 | 1 | 88.49X3.53 |
| K703-090 | 90 | 102.2 | 92 | 8.1 | 12.1 | 1 | 94.84X3.53 |
| K703-090/1 | 90 | 98.8 | 92 | 6.3 | 9.3 | 0.8 | 94.93x2.62 |
| K703-100 | 100 | 112.2 | 102 | 8.1 | 12.1 | 1 | 104.37X3.5 |
| K703-105 | 105 | 117.2 | 107 | 8.1 | 12.1 | 1 | 110.72X3.5 |
| K703-110 | 110 | 122.2 | 112 | 8.1 | 12.1 | 1 | 113.89X3.5 |
| K703-110/1 | 110 | 118.8 | 112 | 6.3 | 9.3 | 0.8 | 110.72x3.5 |
| K703-115 | 115 | 127.2 | 117 | 8.1 | 12.1 | 1 | 120.24X3.5 |
| K703-120 | 120 | 132.2 | 122 | 8.1 | 12.1 | 1 | 123.42X3.5 |
| K703-125 | 125 | 137.2 | 127 | 8.1 | 12.1 | 1 | 129.77X3.5 |
| K703-130 | 130 | 142.2 | 132 | 8.1 | 12.1 | 1 | 136.12X3.5 |
| K703-135 | 135 | 147.2 | 137 | 8.1 | 12.1 | 1 | 139.29X3.5 |
| K703-140 | 140 | 156 | 142.5 | 9.5 | 14.5 | 1.5 | 145.42X5.3 |
| K703-150 | 150 | 166 | 152.5 | 9.5 | 14.5 | 1.5 | 151.77X5.3 |
| K703-153 | 153 | 169 | 155.5 | 9.5 | 14.5 | 1.5 | 158.12x5.3 |
| K703-160 | 160 | 176 | 162.5 | 9.5 | 14.5 | 1.5 | 164.47X5.3 |
| K703-165 | 165 | 181 | 167.5 | 9.5 | 14.5 | 1.5 | 170.82X5.3 |
| K703-170 | 170 | 186 | 172.5 | 9.5 | 14.5 | 1.5 | 177.17X5.3 |
| K703-175 | 175 | 191 | 177.5 | 9.5 | 14.5 | 1.5 | 177.17x5.3 |
| K703-180 | 180 | 196 | 182.5 | 9.5 | 14.5 | 1.5 | 183.52X5.3 |
| K703-190 | 190 | 206 | 192.5 | 9.5 | 14.5 | 1.5 | 196.22X5.3 |
| K703-200 | 200 | 216 | 202.5 | 9.5 | 14.5 | 1.5 | 202.57X5.3 |
| K703-212 | 212 | 228 | 214.5 | 9.5 | 14.5 | 1.5 | 221.62x5.3 |
| K703-220 | 220 | 236 | 222.5 | 9.5 | 14.5 | 1.5 | 221.62X5.3 |
| K703-240 | 240 | 256 | 242.5 | 9.5 | 14.5 | 1.5 | 247.02X5.3 |
| K703-250 | 250 | 266 | 252.5 | 9.5 | 14.5 | 1.5 | 253.57X5.3 |
| K703-260 | 260 | 276 | 262.5 | 9.5 | 14.5 | 1.5 | 266.07X5.3 |
| K703-270 | 270 | 286 | 272.5 | 9.5 | 14.5 | 1.5 | 278.77X5.3 |
| K703-280 | 280 | 296 | 282.5 | 9.5 | 14.5 | 1.5 | 278.77X5.3 |
| K703-300 | 300 | 316 | 302.5 | 9.5 | 14.5 | 1.5 | 304.17X5.3 |
| K703-320 | 320 | 336 | 322.5 | 9.5 | 14.5 | 1.5 | 329.57X5.3 |
| K703-330 | 330 | 346 | 332.5 | 9.5 | 14.5 | 1.5 | 329.57X5.3 |
| K703-350 | 350 | 366 | 352.5 | 9.5 | 14.5 | 1.5 | 354.97x5.3 |
| K703-360 | 360 | 376 | 362.5 | 9.5 | 14.5 | 1.5 | 354.97X5.3 |
| K703-380 | 380 | 396 | 382.5 | 9.5 | 14.5 | 1.5 | 380.37X5.3 |
| K703-400 | 400 | 416 | 402.5 | 9.5 | 14.5 | 1.5 | 405.26X5.3 |
| K703-405 | 405 | 429 | 407.5 | 14 | 22 | 1.5 | 417.96x6.9 |
| K703-430 | 430 | 454 | 432.5 | 14 | 22 | 1.5 | 443.36x6.9 |
| K703-440 | 440 | 464 | 442.5 | 14 | 22 | 1.5 | 443.36x6.9 |
| K703-460 | 460 | 484 | 462.5 | 14 | 22 | 1.5 | 468.76x6.9 |
| K703-480 | 480 | 504 | 482.5 | 14 | 22 | 1.5 | 481.46X6.9 |
| K703-490 | 490 | 514 | 492.5 | 14 | 22 | 1.5 | 506.86x6.9 |
| K703-500 | 500 | 524 | 502.5 | 14 | 22 | 1.5 | 506.86x6.9 |
| K703-510 | 510 | 534 | 412.5 | 14 | 22 | 1.5 | 522.45x6.9 |
| K703-520 | 520 | 544 | 522.5 | 14 | 22 | 1.5 | 532.26x6.9 |
| K703-530 | 530 | 554 | 532.5 | 14 | 22 | 1.5 | 532.26x6.9 |
| K703-540 | 540 | 564 | 542.5 | 14 | 22 | 1.5 | 557.66x6.9 |
| K703-570 | 570 | 584 | 572.5 | 14 | 22 | 1.5 | 582.86x6.9 |
